Intralogistics Product Catalogue
Automation hardware and software engineered, integrated, and supported throughout Southeast Asia by CoreLogis in partnership with DELIECN.
Category 01
Material Handling Robot
Autonomous pallet and tote movement systems for high-density storage and swift intralogistics transport.
Flagship
4-Way Pallet Shuttle Robot
Pallet shuttle with 1,500 kg rated load, body thickness ≤125 mm, and maximum travel speed of 120 m/min.
Heavy Duty
Pallet Stacker Crane AS/RS
Single-mast model: up to 2,000 kg rated load, 45 m lifting height, and 240 m/min travel speed.

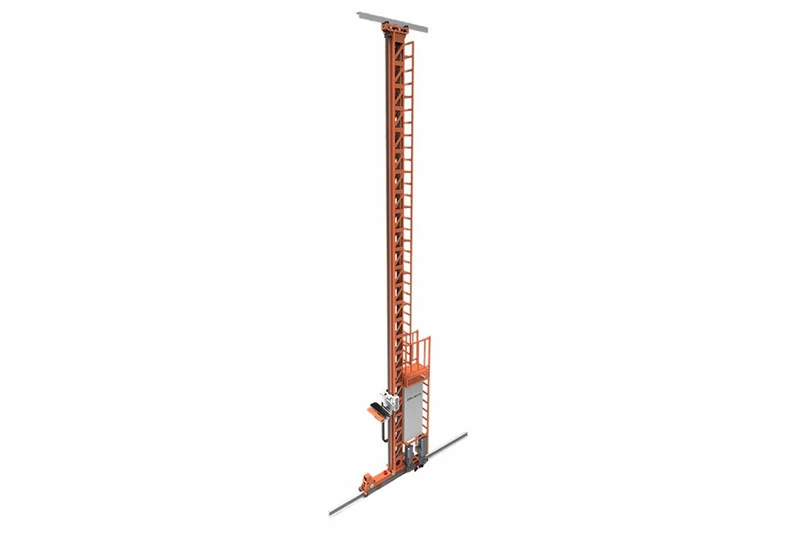

Miniload Stacker Crane
Miniload family for totes and cartons, with published limits of 300 kg unit load and 360 m/min travel speed, depending on configuration.
High Speed
Tote Four-Way Shuttle Robot
Four-way tote handling with 50 kg rated load, 5 m/s maximum travel speed, and adjustable fork width of 140–600 mm.
Toyota Proven

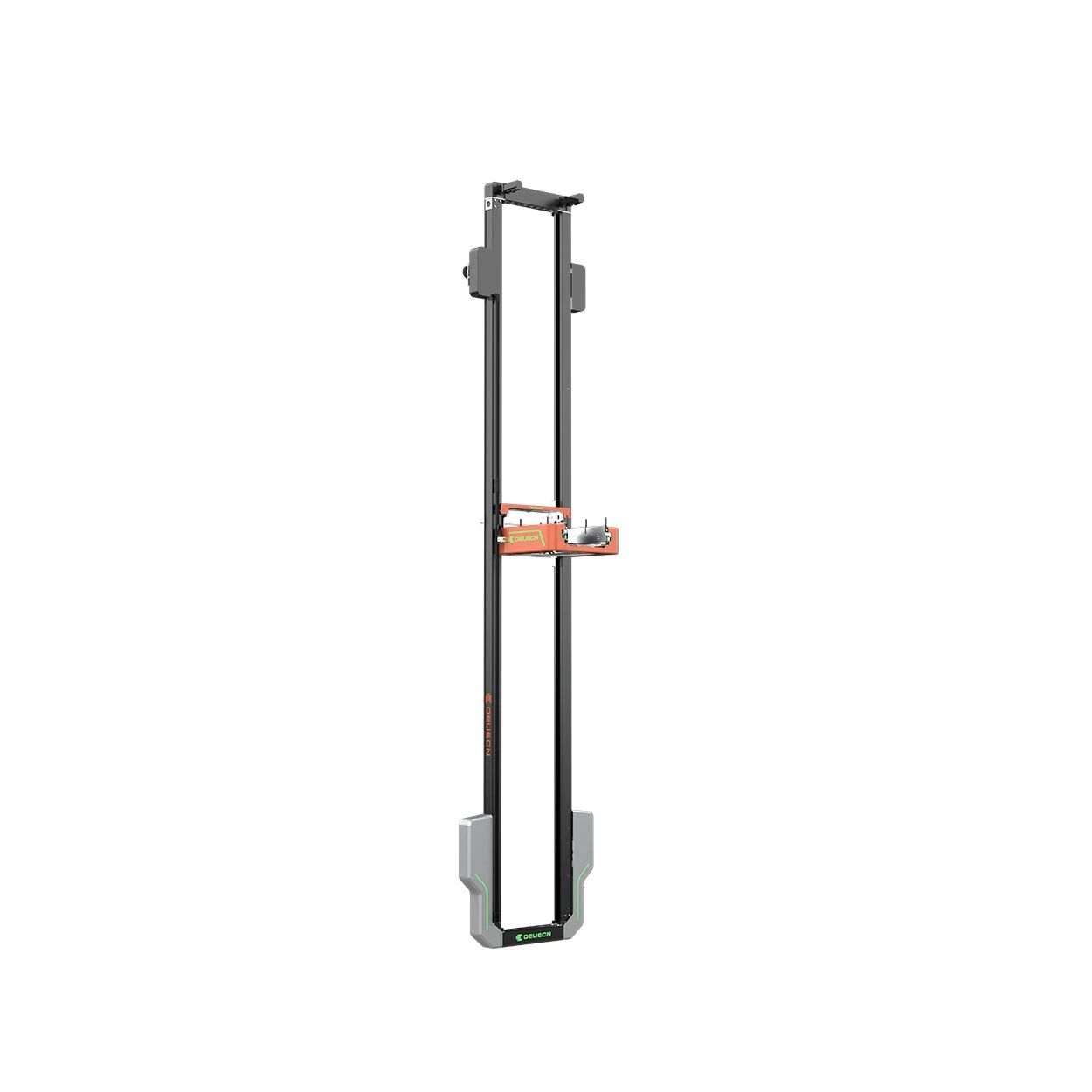

Mini-FlyBox High-Density System
Clamping double-deep bidirectional module handling totes up to 50kg with 1100mm narrow aisle clearance.
Tote AMR & Pallet Latent AMR
SLAM and QR-guided autonomous mobile robots for flexible material flow between production, storage, and dispatch.
EMS (Electric Monorail System)
Overhead rail carrier systems freeing valuable floor space for high-throughput continuous material distribution.
RGV (Straight & Loop Rail)
High-speed rail guided shuttle cars operating at speeds up to 200 m/min linking multiple AS/RS aisles to packing lines.
Category 02
Vertical Storage & Conveying Equipment
Space-saving vertical retrieval modules, continuous vertical lifters, and modular pallet/tote conveying systems.
Goods-to-Person
Smart Vertical Lift Module (VLM)
Automated tray retrieval with equipment height up to 20 m and configured load capacity of 250–1,000 kg.
Smart Vertical Carousel
Paternoster-principle vertical rotating shelving delivering rapid access to high-turnover small parts and tooling.
High-Speed Pallet & Tote Lifters
Continuous and reciprocating vertical elevators connecting ground-level receiving to multi-tier mezzanine shuttle racks.
Pallet & Tote Conveyor Systems
Heavy-duty chain conveyors, driven roller lines, 90-degree transfer tables, and automated palletizers/depalletizers.
Category 03
Smart Warehousing Systems & Racking
Integrated software command centers, WMS/WCS controls, and heavy-duty structural racking for automated warehouses.
Enterprise Control

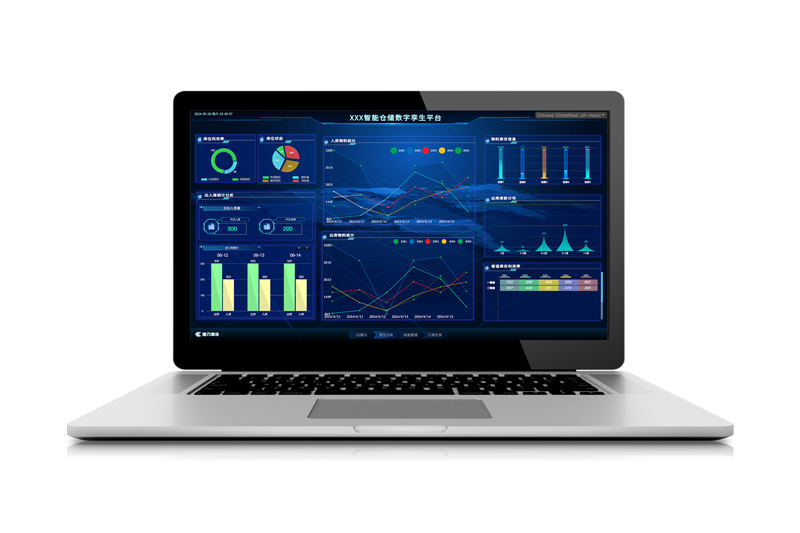

Smart Warehousing System (WMS/WCS)
DELIECN WMS, WCS, API interfaces, and 3D visualization coordinate inventory, equipment tasks, and operational monitoring.
Precision Racking
AS/RS High-Bay & Shuttle Racking
High-precision structural steel racking engineered specifically for 4-way shuttles, miniloads, and 45m stacker cranes.
Turnkey System Integration
Need a custom engineered configuration?
CoreLogis intralogistics engineers configure complete turnkey systems combining DELIECN hardware, custom racking, and software integration across Singapore, Malaysia, and Indonesia.
